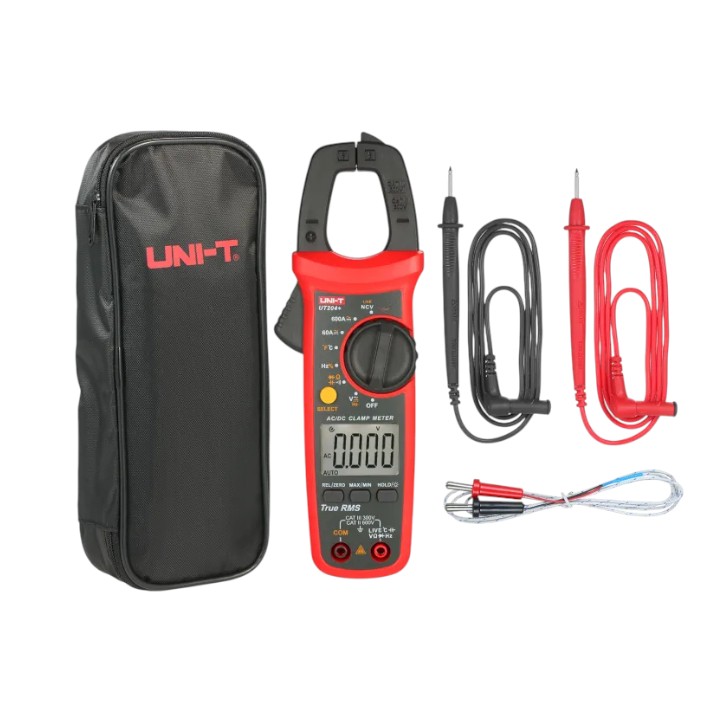

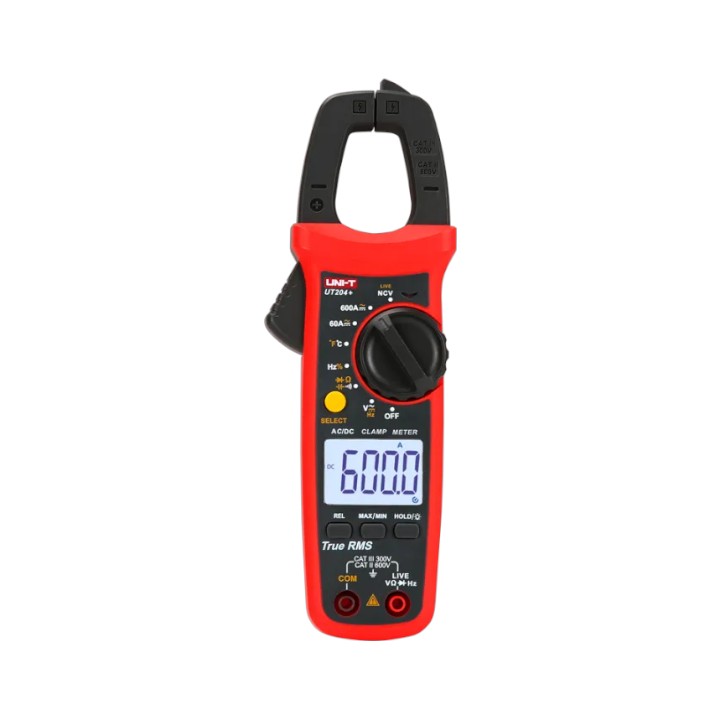

UNI-T UT204+ Digital Clamp Meter In Bangladesh
The UNI-T UT204+ Digital Clamp Meter in Bangladesh. Get the original products at the most affordable price at ย and enjoy the quality with the promise of the best customer service in Bangladesh.
The UNI-T UT204+ is a professional-grade True RMS clamp meter designed for accurate and safe measurement of AC/DC voltage, current, resistance, capacitance, frequency, and temperature. Ideal for electricians, technicians, and DIY users, this meter offers non-contact voltage detection (NCV), a large backlit display, and multiple safety ratings for reliable performance in demanding environments.
Features
- True RMS for precise readings on non-linear loads
- Measures up to 600A AC/DC current and 600V AC/DC voltage
- NCV function for safe non-contact voltage detection
- Temperature measurement with included thermocouple
- Frequency and duty cycle analysis
- Auto range and data hold functionality
- MAX/MIN recording and ZERO reset
- Large LCD screen with backlight for low-light use
- CAT III 300V / CAT II 600V safety rating
- Durable clamp with 28mm jaw opening
Specifications
- Voltage Range: 600V AC/DC
- Current Range: 600A AC/DC
- Capacitance: Up to 60mF
- Resistance: Up to 60Mฮฉ
- Frequency: Up to 10MHz
- Temperature: -40ยฐC to 1000ยฐC
- Display Count: 6000
- Clamp Opening: 28mm
- Safety Rating: CAT III 300V / CAT II 600V
- Power Supply: 2 x AAA batteries
- Dimensions: 215mm x 63mm x 36mm
- Weight: Approx. 280g
How It Works
- Rotate the dial to select the desired measurement mode (AC/DC current, voltage, resistance, etc.)
- Use the clamp to measure current without direct contact by clamping around the conductor
- Insert test leads into the COM and VฮฉHz ports for voltage, resistance, or frequency measurements
- Activate NCV mode to detect live wires without touching them
- Use the HOLD, MAX/MIN, and ZERO buttons to freeze or reset readings as needed
- For temperature, connect the thermocouple and switch to the ยฐC mode
